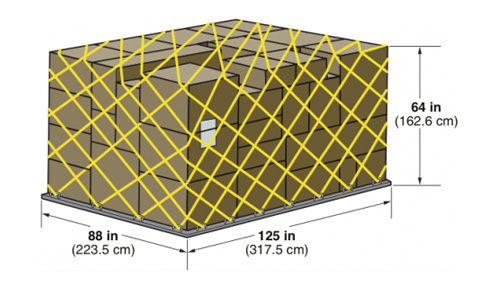

88" PALLET

• IATA ULD Code: PIP Classification: 88” Pallet with net
• Suitable for: B747, B777, DC-10
• Maximum volume: 11.9 cu. m (420 cu. ft.)
• Maximum gross weight: 747/DC-10: 6033 kg (13300 lb)
• 767: 5103 kg (1127 lb)
• 777/DC-10: 4626 kg (10501 lb)
• Can be loaded to 96” (162 cm) and 118” (300 cm) on freighters

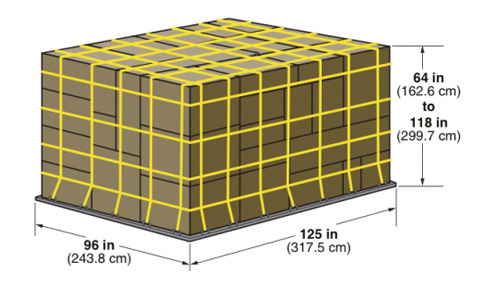

96" PALLET

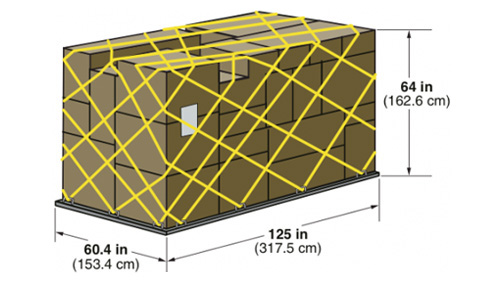

HALF PALLET

• IATA ULD Code: PLA half pallet with net
• Also knows as: PLB, FLA, P9A, P9B, P9P, P9R, P9S
• Classification: HP
• Rate Class: 6
• Suitable for: Lower deck: B747, B777
• Main deck: B707F, B727F, B737F
• Maximum volume: 7.2 cu.m (254 cu. ft.)
• Maximum gross weight: 3175 kg (6999 lb)

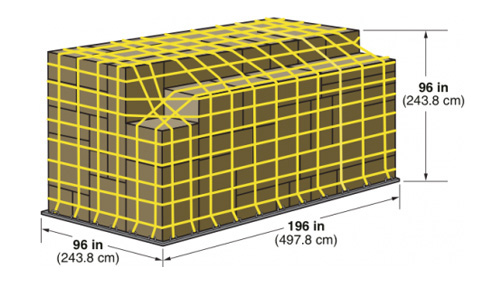

16 FT PALLET

• IATA ULD Code: PRA 16ft flat pallet with net
• Also known as: PMA, P4A, P4M, PZA
• Classification: MDP
• Rate Class: Type 1P
• Suitable for: B747, B747Combi
• Maximum volume: 26.8 cu. m (946 cu. ft.)
• Maximum gross weight: 11300 kg (24991 lb)

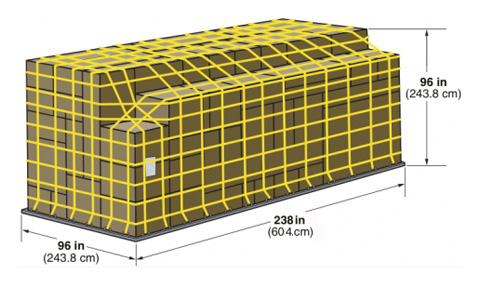

20 FT PALLET

• IATA ULD Code: PGA 20ft flat pallet with net
• Also knows as: PGA, PGE, PGF, PSA, PSG, P7A, P7E, P7F
• Classification: M-6
• Rate Class: Type 1
• Suitable for: B747F, B747Combi
• Maximum volume: 33.2 cu. m (1174 cu. ft.)
• Maximum gross weight: 11340 kg (25000 lb)

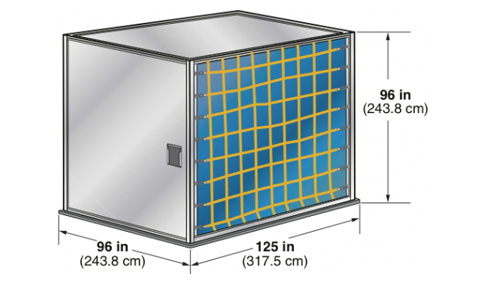

AQ6

• IATA ULD Code: AMA Rectangular Container on P6P Base
• Also known as: AMF, AMG, AMK, AMP, AQA, AQD, AQ6
• Classification: M-1
• Rate Class: Type 2
• Suitable for: B747F, B747Combi
• Maximum volume: 17.5 cu. m (618 cu. ft.)
• Maximum gross weight: 6804 kg (15000 lb)

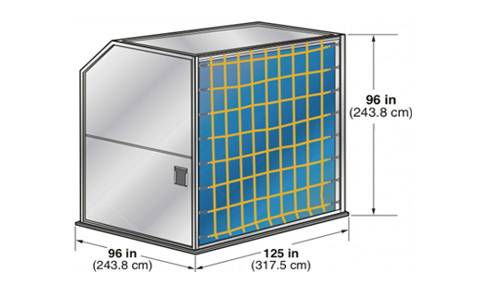

AQ7

• IATA ULD Code: AMD Contoured Container on P6P Base
• Also known as: AQA, AQ7
• Classification: M1H
• Rate Class: Type 2H
• Suitable for: B747F, B747Combi
• Maximum volume: 19.9 cu. m (702 cu. ft.)
• Maximum gross weight: 6800 kg (14991 lb)

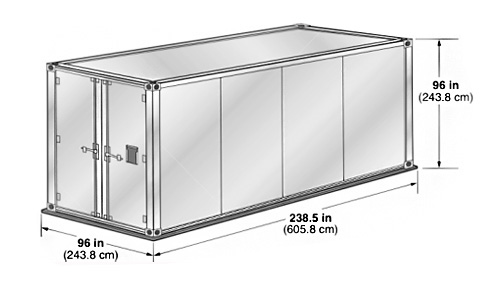

M-6

• IATA ULD Code: AGA 20ft Box
• Container also known as: ASE
• Classification: M-6
• Rate Class: Type 1
• Suitable for: B747F, B747Combi
• Maximum volume: 33.0 cu. m (1165 cu. ft.)
• Maximum gross weight: 11340 kg (25000 lb)

LD-26

• IATA ULD Code: PGA 20ft flat pallet with net
• Also knows as: PGA, PGE, PGF, PSA, PSG, P7A, P7E, P7F

• Rate Class: Type 1
• Suitable for: B747F, B747Combi
• Maximum volume: 33.2 cu. m (1174 cu. ft.)
• Maximum gross weight: 11340 kg (25000 lb)

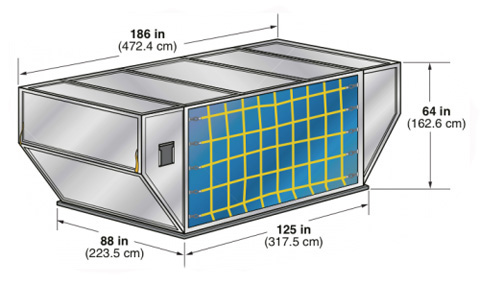

LD-29

• IATA ULD Code: AAU Contoured Container on P1P Base
• Classification: LD-29
• Rate Class: Type 5
• Suitable for: B747
• Internal volume: 14.2 cu. m (501 cu. ft.)
• Maximum gross weight: 6033 kg (13300 lb)

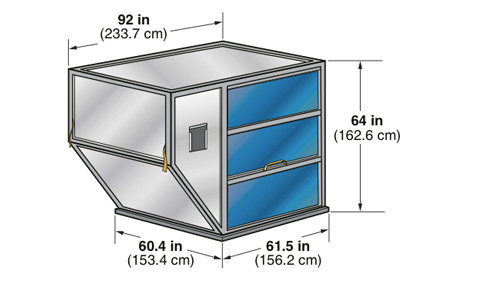

LD-1

• IATA ULD Code: AKC Contoured
• Container Also known as: AVC, AVD, AVK, AVJ Forkable: AVY
• Classification: LD-1
• Rate Class: Type 8
• Suitable for: B747, B767, B777, MD-11
• Maximum volume: 4.8 cu. m (169.5 cu. ft.)
• Maximum gross weight: 1588 kg (3500 lb)

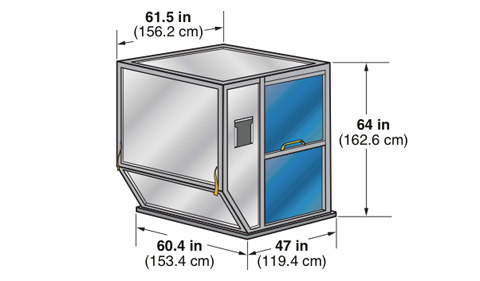

LD-2

• IATA ULD Code: DPE Contoured Container
• Also known as: APA, DPA
• Forkable: DPN
• Classification: LD-2
• Rate Class: Type 8D
• Suitable for: B767
• Maximum volume: 3.4 cu. m (120 cu. ft.)
• Maximum gross weight: 1225 kg (2700 lb)

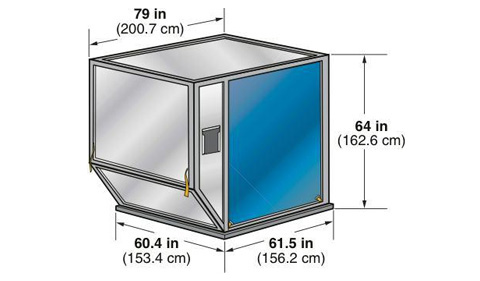

LD-3

• IATA ULD Code: AKE Contoured Container
• Also known as: AKE, AVA, AVB, AVC, AVK, DVA, DVE, DVP, XKS, XKG
• Forkable: AKN, AVN, DKN, DVN, XKN
• Classification: LD-3
• Rate Class: Type 8uitable for: B747F, B747Combi
• Suitable for: A300, A310, A330, A340, B747, B767, B777, DC-10, MD-11, L1011
• Maximum volume: 4.3 cu. m (152 cu. ft.)
• Maximum gross weight: 1588 kg (3500 lb)

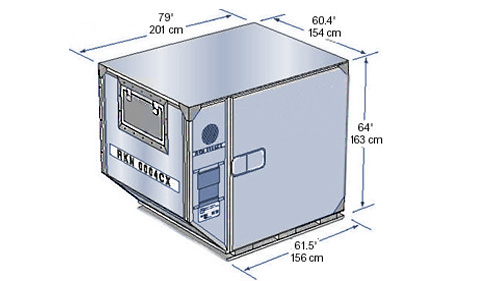

INSULATED LD-3

• IATA ULD Code: RKN
• Classification: LD-3
• Rate Class: Type 8
• Suitable for: A300, A310, A330, A340,B747, B767, B777, DC-10, MD-11, L1011
• Maximum volume: 3.0 cu. m (109 cu. ft.)
• Maximum gross weight: 1588 kg (3501 lb)
• Temperature Control Range: -20C to +20C

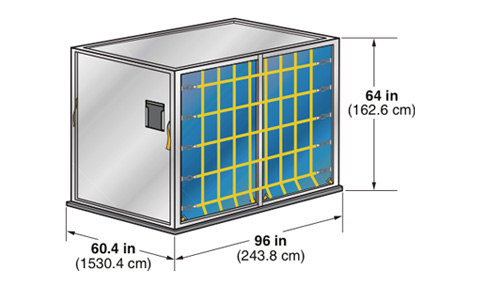

LD-4

• IATA ULD Code: ALP Rectangular Container
• Also known as: ALD, AWD, AWZ, DLP
• Forkable: ALB, ALC, AWB, AWC
• Classification: LD-4
• Rate Class: Type 8
• Suitable for: B767, B777
• Maximum volume: 5.7 cu. m (201 cu. ft.)
• Maximum gross weight: 2449 kg (5399 lb)
• Temperature Control Range: -20C to +20C

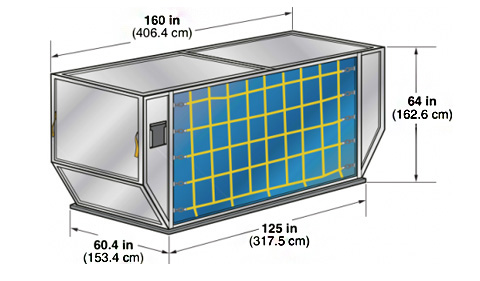

LD-6

• IATA ULD Code: ALF Contoured Container
• Also known as: AWD, AWF
• Forkable: AWC Classification: LD-6
• Rate Class: Type 6W
• Suitable for: A300, A310, A330, A340, B747, B767, B777, MD-11, L1011
• Maximum volume: 8.9 cu. m (314 cu. ft.)
• Maximum gross weight: 3175 kg (7000 lb)

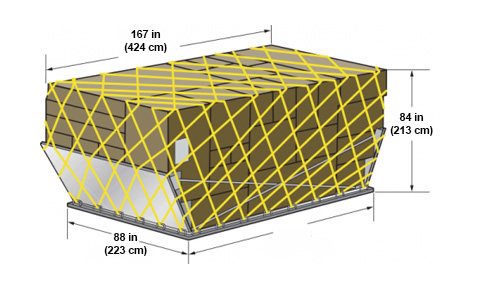

LD-7

• IATA ULD Code: XAW P1P Pallet with fixed angle wings and net
• Classification: LD-7
• Rate Class: Type 5
• Suitable for: Wide body: All aircraft
• Maximum volume with overhang: 14.0 cu. m (494 cu. ft.)
• Maximum gross weight: 5000 kg (11023 lb)

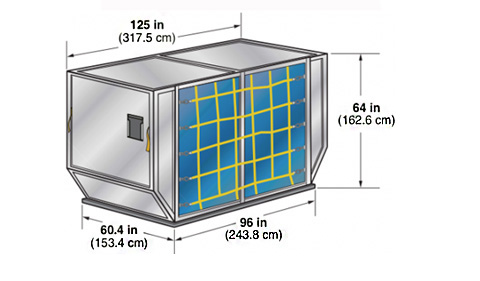

LD-8

• IATA ULD Code: DQF
• Also known as: ALE, ALN, DLE, DLF, DQP, MQP
• Classification: LD-8
• Rate Class: Type 6A Suitable for: B767
• Maximum volume: 6.85 cu. m (242 cu. ft.)
• Maximum volume: 33.0 cu. m (1165 cu. ft.)
• Maximum gross weight: 2450 kg (5401 lb)

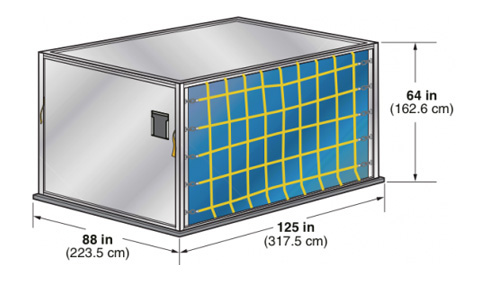

LD-9

• IATA ULD Code: AAP Enclosed Pallet on P1P base
• Also known as: AA2, XAG, XAV
• Classification: LD-9
• Rate Class: Type 5
• Suitable for: A300, A310, A330, A340, B747, B767, DC-10,MD-11, L1011
• MMaximum volume: 9.1 cu. m (321 cu. ft.)
• Maximum gross weight: 4624 kg (10194 lb), lower deck 6000 kg (13227 lb) main deck

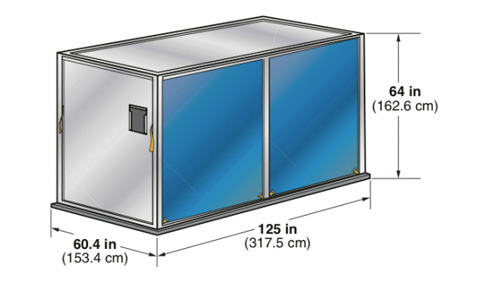

LD-11

• IATA ULD Code: ALP Rectangular Container
• Also known as: ALD, AW2, AWB, AWD, AWZ, DLP, DWB, MWB
• Refrigerated version: RQB, RWD, RWZ
• Classification: LD-11
• Rate Class: Type 6
• Suitable for: A300, A310, A330, A340, B747, B767, DC-10, MD-11, L1011
• Internal volume: 7.2 cu. m (253 cu. ft.)
• Maximum gross weight: 3176 kg (7002 lb)

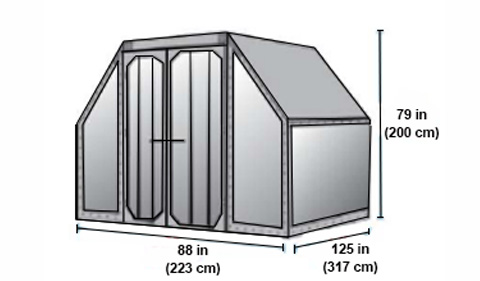

A-2

• IATA ULD Code: DAA
• Classification: A-2
• Suitable for: B767, B747F, DC-8, DC-10, A300/F
• Internal volume: 12.6 cu. m (444 cu. ft.)
• Maximum gross weight: 6033 kg (13300 lb)
